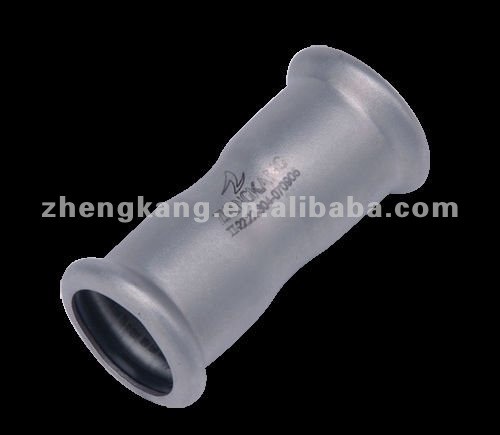

Stainless Steel Equal Inox Press Fittings AISI 316L 15-54mm Easy Installation

1 Press fitting range

Coupling-Equal Coupling,Reducing coupling,Slip coupling, oupling with male/ female threads;
Elbow-Elbow 90°,Elbow 45°, Reducing elbow,Elbow with plain end, Elbow with wall plate, Elbow with male/ female threads;
Tee-Equal tee, Reducing tee, Tee with wall plate, Tee with male/ female threads;
Other-cap, Pipe Bridge, Flange adapter.

2 Material

Stainless steel 304L, Edelstahl1.4306/ Edelstahl1.4301, AISI304L, Inox304L;
Stainless steel 316L, Edelstahl1.4404, AISI316L, Inox316L;

Galvanized carbon steel, Kohlenstoffstahl, ACCIAIO AL CARBONIO.

3 Size

Size range:
GB1 series sizes: 15,18,22,28,35,42,54,76.1,88.9,108mm. (Same as DVGW W534:1995);
GB2 series’ sizes: 15.88, 22.22, 28.58, 34.00, 42.7, 48.6, 76.1, 88.9, 108mm. (Same as JIS G 3448-1980).

4 Standard

Press fitting standard: (DIN)DVGW W534-1995; (JIS)JWWA G116:2001; Pipe standard: DIN10312:2003

O-ring sealing standard: CEN EN 681-1:2006

5 O-Ring

Chlorinated butyl rubber(CIIR), EPDM, HNBR, NBR and FKM, etc.

6 Galvanization

all carbon steel pipe fittings are plated with rust-resistant zinc.

7 Payment term

TT, L/C

8 Anneal

all stainless steel pipe fittings are annealed in inert gases before packing.

9 Advantage

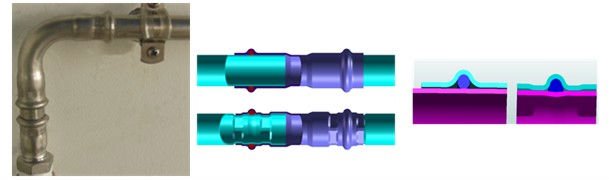

Press fitting is the best connection for thin wall stainless steel pipe, PE(X)-Al-PE(X) multiplayer pipe and SS-PE composite pipe. Easy and fast installation with simple press tools can save time and improve job productivity and profitability.
